Generally, there are three main cordage type used in the world: |
|
1. The American wire Gauge (AWG) system used in North America. |
|
2. The European Harmonized types. In AWG system, the cordage
is described in terms of wire gauge size such as 18AWG, while
(an 18AWG conductor is comparable to 0.823mm2) |
|
3. IEC types Xxmm2 |
![](../images/dot.jpg) |
CONDUCTOR COLOUR CORDES: |
|
|
North America |
Harmonized |
IEC227 |
L=Live |
Black |
Brown |
Brown |
N=Neutral |
White |
Blue |
Blue |
E=Earth |
Green |
Green/Yellow |
Green/Yellow |
|
![](../images/dot.jpg) |

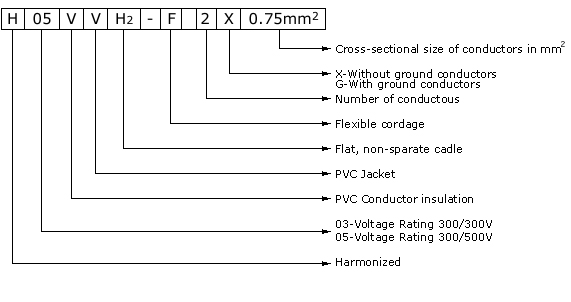

Harmonized wire coding system: |
|
This chart illustrates the harmonization: H05VVH2-F 2X0.75mm2 |
|
![](images/t01.jpg) |
![](../images/dot.jpg) |
The world Plug Drawing |
|
Configuration
Code |
A |
B |
C |
D |
E |
Configuration
Diagram |
![](images/ta.jpg) |
![](images/tb.jpg) |
![](images/tc.jpg) |
![](images/td.jpg) |
![](images/te.jpg) |
Type of power
Supply |
China U.S.A
Japan |
U.S.A |
Europe |
Europe |
Europe |
Configuration
Code |
F |
G |
H |
I |
J |
Configuration
Diagram |
![](images/tf.jpg) |
![](images/tg.jpg) |
![](images/th.jpg) |
![](images/ti.jpg) |
![](images/tj.jpg) |
Type of power
Supply |
Denmark |
Switzerland |
Italy |
Britain |
Britain |
Configuration
Code |
K |
L |
M |
|
|
Configuration
Diagram |
![](images/tk.jpg) |
![](images/tl.jpg) |
![](images/tm.jpg) |
|
|
Type of power
Supply |
Australia |
Australia |
Israel |
|
|
|
|
This chart presents and overview of power supply systems throughout
the world, the configuration listed for the electrical systems
of industrialized countries are accurate and reliable. |
|
|
|
|
|
|
