CODE INFORMATION page 2 of 9 | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 |




H03VVH2-F/H03V2V2H2-F

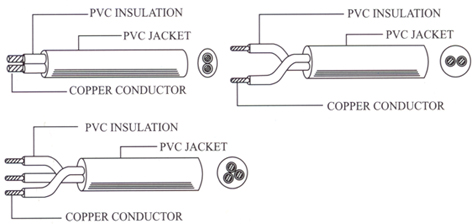

CONDUCTOR INSULATION JACKET
No.of core Sectional area
(mm2) 		Nom. Thick
(mm) 		Nom.Diam.
(mm) 		Nom.Thick
(mm) 		Nom.Diam
(mm)
2 0.5 0.5 1.95 0.6 3.5x5.6
0.75 0.5 2.15 0.6 3.6x5.7
H05VVH2-F/H05V2V2H2-F
2 0.5 0.6 2.35 0.8 4.1x6.5
0.75 0.6 2.50 0.8 4.5x7.0

H05VV-F/H05V2V2-F
CONDUCTOR INSULATION JACKET
No.of core Sectional area
(mm2) 		Nom. Thick
(mm) 		Nom.Diam.
(mm) 		Nom.Thick
(mm) 		Nom.Diam
(mm)
2 0.75 0.6 2.35 0.8 6.3
1.0 0.6 2.55 0.8 6.8
1.25 0.8 2.90 0.8 7.4
1.5 0.7 3.00 0.8 7.8
2.5 0.83.65 1.0 9.3 0.75
3 0.75 0.6 2.35 0.8 7.0
1.0 0.6 2.55 0.8 7.2
1.5 0.7 3.00 0.9 8.3
2.5 0.8 3.65 1.1 10.10
H03VV-F/H03V2V2-F
2 0.5 0.5 1.95 0.6 5.30
0.75 0.5 2.15 0.6 5.60
3 0.5 0.5 1.95 0.6 5.40
0.75 0.5 2.15 0.6 6.00




H03VVH8-F/H03VVH2H8-F
CONDUCTOR INSULATION JACKET
No.of core Sectional area
(mm2) 		Nom. Thick
(mm) 		Nom.Diam.
(mm) 		Nom.Thick
(mm) 		Nom.Diam
(mm)
2 0.5 0.5 2.00 0.6 5.4 or 3.3x5.4
0.75 0.5 2.20 0.6 5.7 or 3.4x5.8
3 0.5 0.5 2.00 0.6 5.6
0.75 0.5 2.20 0.6 6.3
H05VVH8-F/H05VVH2H8-F
2 0.75 0.6 2.4 0.8 6.6 or 4.5x6.8
1.0 0.6 2.6 0.8 7.2
1.5 0.7 3.05 0.8 8.2
3 0.75 0.6 2.40 0.8 7.2
1.0 0.6 2.60 0.8 7.6
1.5 0.7 3.05 0.9 8.8




227 IEC 53(YZ)/57(YZW)- 300/500V
CONDUCTOR INSULATION JACKET
No.of core Sectional area
(mm2) 		Nom. Thick
(mm) 		Nom.Diam.
(mm) 		Nom.Thick
(mm) 		Nom.Diam
(mm)
2 0.75 0.6 0.8 6.0 8.2
1.0 0.6 0.9 6.6 8.8
1.5 0.8 1.0 8.0 10.5
2.5 0.9 1.1 9.5 12.5
3 0.75 0.6 0.8 6.5 8.8
1.0 0.6 0.9 7.0 9.2
1.5 0.8 1.0 8.6 11.0
2.5 0.9 1.1 10.0 13.0
4 0.75 0.6 0.9 7.7 9.6
1.0 0.6 0.9 7.6 10.0
1.5 0.8 1.1 9.6 12.5
2.5 0.9 1.2 11.0 14.0
5 0.75 0.6 1.0 8.0 11.0
1.0 0.6 1.0 8.5 11.5
1.5 0.8 1.1 10.5 13.5
2.5 0.9 1.3 12.5 15.5


CODE INFORMATION page 2 of 9 | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 |
