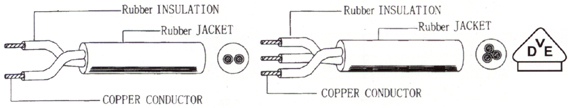

H05RR-F/H05RN-F
CONDUCTOR INSULATION JACKET
No.of core Sectional area
(mm2) 		Nom. Thick
(mm) 		Nom.Diam.
(mm) 		Nom.Thick
(mm) 		Nom.Diam
(mm)
2 0.75 0.6 0.8 6.0 8.2
1.0 0.6 0.9 6.6 8.8
1.5 0.8 1.0 8.0 10.5
2.5 0.9 1.1 9.5 12.5
3 0.75 0.6 0.9 6.5 8.8
1.0 0.6 0.9 7.0 9.2
1.5 0.8 1.0 8.6 11.0
2.5 0.9 1.1 10.0 13.0
4 0.75 0.6 0.9 7.1 9.6
1.0 0.6 0.9 7.6 10.0
1.5 0.8 1.1 9.6 12.5
2.5 0.9 1.2 11.0 14.0
5 0.75 0.6 1.0 8.0 11.0
1.0 0.6 1.0 8.5 11.5
1.5 0.8 1.1 10.5 13.5
2.5 0.9 1.3 12.5 15.5
H07RN-F
2 1.0 0.8 1.3 8.0 10.5
1.5 0.8 1.5 9.0 11.5
2.5 0.9 1.7 10.5 13.5
3 1.0 0.8 1.4 8.6 11.5
1.5 0.8 1.6 9.6 12.5
2.5 0.9 1.8 11.5 14.5
4 1.0 0.8 1.5 9.6 12.5
1.5 0.8 1.7 10.5 13.5
2.5 0.9 1.9 12.5 15.5
5 1.0 0.8 1.6 10.5 13.5
1.5 0.8 1.8 11.5 15.0
2.5 0.9 2.0 13.5 17.0




Model Rated
Temparature
(° C)		 Tinning Copper Wire OS-1 Wire Exradius(mm)
Specifications
(AWG) 		Texture Lim
(down) 		Lim
(up)
1013 90 28 8/0.12 1.98 2.37
26 8/0.15 2.08 2.49
24 13/0.15 2.24 2.68
22 19/0.15 2.38 2.85
20 30/0.15 2.55 3.06
18 47/0.15 2.82 3.38
16 40/0.20 3.13 3.75
14 66/0.20 3.63 4.35
12 47/0.30 4.96 4.75
10 75/0.30 4.57 5.48
1618 80 28 8/0.12 2.42 2.90
26 8/0.15 2.52 3.02
24 13/0.15 2.68 3.21
22 19/0.15 2.72 3.26
20 30/0.15 2.99 3.58
18 47/0.15 3.26 2.91
16 40/0.20 3.57 4.28
1500 105 26 8/0.15 2.08 2.49
24 13/0.15 2.24 2.68
22 19/0.15 2.38 2.85
20 30/0.15 2.55 3.06
18 47/0.15 2.82 3.38
16 40/0.20 3.13 3.75
14 66/0.20 3.63 4.35
12 47/0.30 3.96 4.75
10 75/0.30 4.57 5.48
1007 80 28 8/0.12 1.16 1.39
26 8/0.15 1.26 1.51
24 13/0.15 1.42 1.70
22 19/0.15 1.56 1.87
20 30/0.15 1.73 2.70
18 47/0.15 2.0 2.40
16 40/0.20 2.31 2.77
1617 105 26 8/0.15 3.08 3.69
24 13/0.15 3.24 3.88
22 19/0.15 3.38 4.05
20 30/0.15 3.55 4.26
18 47/0.15 3.82 4.58
16 40/0.20 4.13 4.95
14 66/0.20 4.63 5.55
1011 80 28 8/0.12 1.98 2.37
26 8/0.15 2.08 2.49
24 13/0.15 2.24 2.68
22 19/0.15 2.38 2.85
20 30/0.15 2.55 3.06
18 47/0.15 2.82 3.38
16 40/0.20 3.13 3.75
14 66/0.20 3.63 4.35
12 47/0.30 3.96 4.75
10 75/0.30 4.57 5.48
1015 105 28 8/0.12 1.98 2.37
26 8/0.15 2.08 2.49
24 13/0.15 2.24 2.68
22 19/0.15 2.38 2.85
20 30/0.15 2.55 3.06
18 47/0.15 2.82 3.38
16 40/0.20 3.13 3.75
14 66/0.20 3.63 4.35
12 47/0.30 3.96 4.75
10 75/0.30 4.57 5.48
